AC Chargers

Use case

Home/Personal use/Commercial

Identification

Swipe card/APP/Plug and charge

Function

LED Light Bar/Display Screen (Optional)/Bluetooth APP/WIFI/OCPP 1.6J

Structure

Dimension(W*L*H)

320*195*130mm

Installation

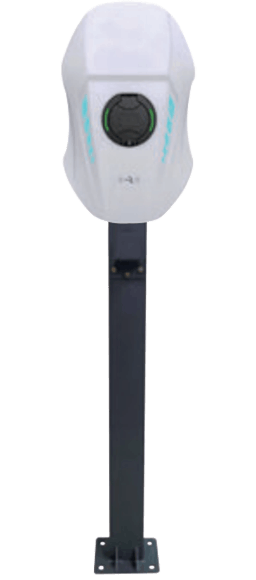

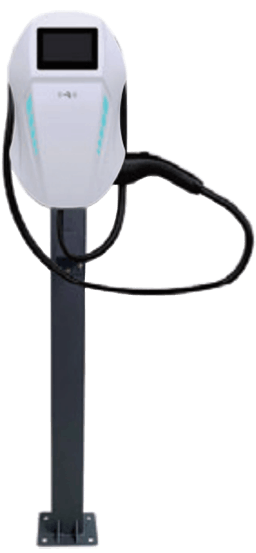

Wall mounted type/Column type

Gross Weight

Weigh according to actual weight

Cabling mode

Down in and out

Cable Length

5m

Electrical Performance

Rated Voltage

AC110V-220V±10V

Frequency

50/60Hz

Rated Power

3.5KW/7KW/11KW/22KW

Maximum Current

16A1P/32A3P/16A3P/32A3P

Safety

Applied environment

Indoor/outdoor

Ingress Protection

IP65

Impact Protection

IK10

Work Temperature

-40℃~+65℃

Work Humidity

5% ~ 95% without condensation

Work Altitude

≤2000M

Electrical Protection

Over current protection, Residual current protection, Ground protection,Surge protection,Over/ Under voltage protection, Over/Under frequency protection,Over/High temperature protection
