Distribution Transformer Monitoring System

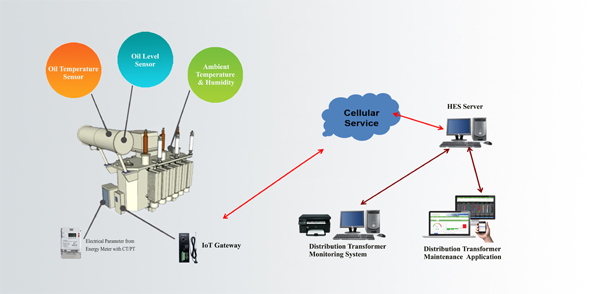

Distribution transformer monitoring system is a whole integrated solution for monitoring, analysis, and alarm of distribution transformer. The transformer monitoring provides the functions for data acquisition, data analysis, event alarm, harmonics measurement etc. The system includes system master station, transformer monitor equipment etc.

1. Key Benefits

Energy audit,load survey and fault analysis

Reduces cost of scheduled and unscheduled maintenance

Reduction in total cost of ownership and the distribution system

Provides on-line transformer diagnosis

Reduces chances of unexpected, cat as trophic failures

Reduces chances of power interruptions

Longer life of transformers

Provides utilities accurate information on loading of power transformers

Better load management

Provides alarm, energy parameters and other data to a central control station using RF modem

May be seamlessly integrated with any SCADA platform

May be used for monitoring power distribution

Theft detection may be possible

2. Features

(1) Application Scenario

Used for real-time monitoring of distribution transformer conditions to detect abnormal states (e.g., overcurrent, overheating) and report them to the control center.

(2) Functional Overview

Monitoring Capabilities

Real-time parameter tracking: Voltage, current, temperature, oil level, load percentage

Power quality monitoring: Harmonics, voltage fluctuations, frequency variations

Environmental monitoring: Ambient temperature, humidity

Condition monitoring: Dissolved gas analysis (DGA), partial discharge detection

Load profiling: Peak demand tracking, load imbalance detection

Reporting Functions

Automated reports: Daily, weekly, monthly performance summaries

Alarm notifications: Immediate alerts for critical parameters

Trend analysis: Historical data visualization

Predictive maintenance reports: Failure probability assessments

Regulatory compliance reports: For utility standards and government regulations

Triggers alarms for abnormal conditions (overload, excessive heat, etc.).

3. System Components

3.1 Distribution Transformer Monitoring And Reporting Module

A Distribution Transformer Monitoring and Reporting Software Module is a critical component of modern power distribution systems that enables real-time tracking, analysis, and management of transformer performance and health.

3.2 Distribution Transformer Maintenance Application

This application module focuses on the full lifecycle management of transformer equipment in enterprise distribution rooms. By building a dual-platform collaborative system consisting of a backend management system and a mobile app, it deeply integrates functions such as equipment operation monitoring, maintenance scheduling, and data analysis. Relying on digital technology, it achieves real-time perception of equipment status, intelligent fault warning assessment, and precise dispatching of operation and maintenance tasks, significantly enhancing operational response speed and management efficiency, and creating an efficient, intelligent, and reliable operation and maintenance system for distribution equipment, thereby laying a solid foundation for energy management.

3.3 Site Equipment

3.3.1 Monitoring Terminal Cabinet

Quantity: 1 (IP54 rated for outdoor use).

3.3.2 Power Supply System

Charger: 1 unit (Input: 220/230V AC, Output: 24V DC).

Batteries: 2 × 12V backup batteries (minimum 8-hour runtime).

Protection: Surge Protection Device (SPD, 20kA) on AC input.

3.3.3 Core Device

IED Unit(With IoT Gateway): 1 unit, supporting IEC 101/104 and DNP3 (Ethernet & serial).

Sampling rate: ≥64 samples/cycle (for harmonic analysis).

Alarm thresholds: Overcurrent (≥1.2In), Overtemperature (≥90°C).

3.3.4 Communication System

Wireless Modem: 1 unit (4G/LoRaWAN, depending on network coverage).

Secure transmission: DTLS encryption or MAC whitelisting.

Interface: Ethernet/RS-485 (configurable for IEC 104 or Modbus TCP).

3.3.5 Temperature Monitoring Sensor

Temperature Probe: PT100 RTD or fiber optic sensor (range: -50°C to 200°C).

Data Collector:

24V DC powered, Modbus RTU over RS-485.

8-channel input, resolution: 0.1°C.

Installation: Top-oil temperature probe (in oil conservator) + winding hotspot (if accessible).

3.4 Environmental Specifications

Operating Temperature: -15°C to 70°C.

Humidity: Up to 95% non-condensing.

3.5 Additional Recommendations

Redundancy: Dual SIM/modems for critical sites.

Remote Firmware Updates: Supported by IED.
