Summator Sample Case
1 Sub - Meter Parameters
2 Sub - Meter Data

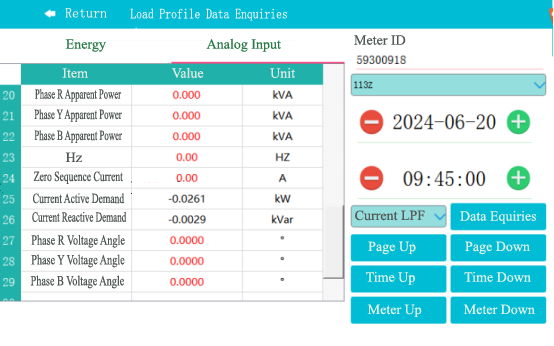

Line 113Z Data PT=100 CT=10

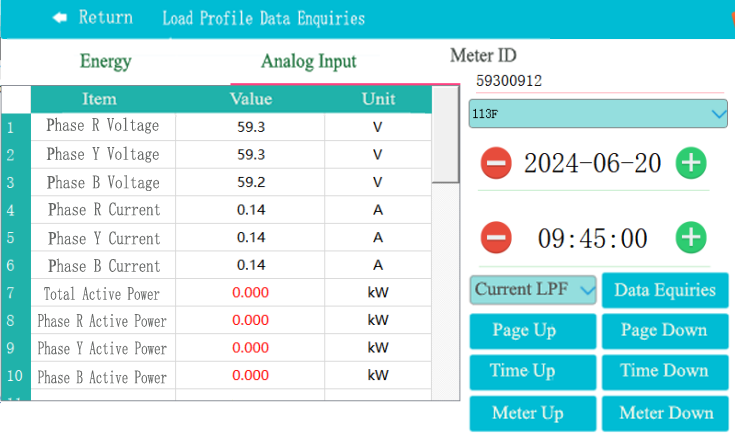

LNE 113F Data PT=100 CT=10

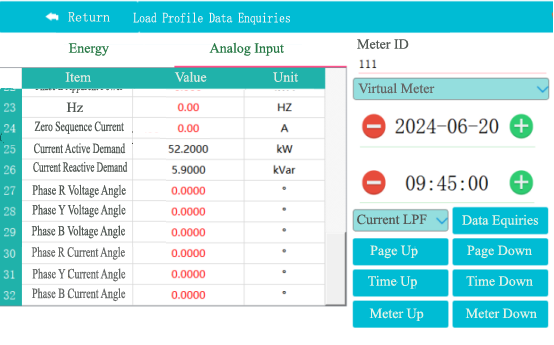

Virtual Meter(Summator)
3 Data Summary
Meter Line | Current (A) | Active Demand (kW) | Reactive (kVar) | PT Ratio | CT Ratio |
113Z | 0.14 | 0.0261 | 0.0029 | 100 | 10 |
113F | 0.14 | 0.0261 | 0.0030 | 100 | 10 |
[Summator] Virtual | 2.8 | 52.2 | 5.9 | 1 | 1 |
